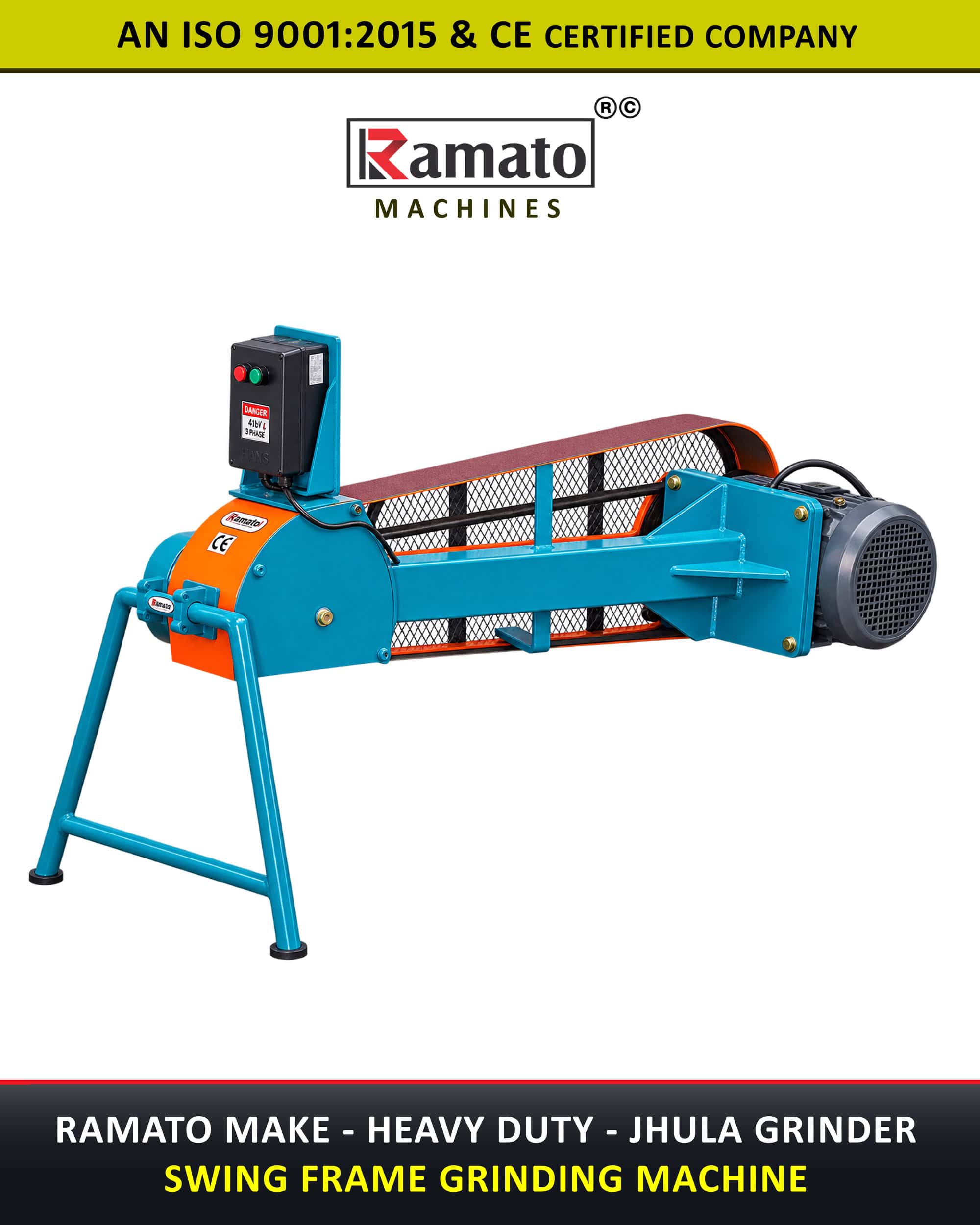

SWING FRAME GRINDER (JHULA GRINDER)

Swing Frame Grinder Manufacturer in India | RAMATO. Ramato is Leading Manufacturer and Exporter Of Bench Grinder, Pipe Type Bench Grinder, Extra Heavy Duty Bench Grinder, Pedestal Bench Grinder, Flexible Shaft Grinders, Flap Bruch Grinder, Bandsaw Grinder, Double Side Bench Grinder, V-Belt Driven Pedestal Grinder, Tool Post Grinder, Grinder Cum Polisher, Swing Frame Grinder, Hanging Frame Grinding Machine, Jhula Grinder and All Type of Grinding Equipment Products From Rajkot Gujarat Bharat (INDIA).

“Ramato” Swing Frame Grinders (Jhulla Grinders) are manufactured by using the latest technology and are subject to rigid quality controls at each stage of manufacturing. The construction of the machines is sturdy and robust to offer vibration free performance.

GENERAL: All components are precisely machined and assembled to ensure smooth running interchangeability of parts and life-long trouble-free service

BODY: The body is made of high-grade cast iron, normalised to ensure strength and rigidity, consistent with neat and pleasing appearance.

CORES: The stator and rotor cores consist of thin lamination of high-quality silicon steel, insulated from one another to reduce the core losses to a minimum.

WINDINGS: High grade super-enamelled wire is used in stator windings which are thoroughly dried and impregnated with insulating varnish and backed to assure good insulation.

SHAFTS: Are of high-grade mild steel machined to close tolerances and is ground accurately for the bearings to be mounted.

SWITCH: Each machine is provided with a rotary on-off switch, mounted on the base for operating the motor.

WHEEL GUARD: The wheel guards are provided on Bench Grinders with end caves, which may be easily removed for fitting of grinding wheels. They give perfect protection to the worker with full freedom of operations. Adjustable tool rests are provided to ensure maximum usage of grinding wheels. A V-belt driven grinder is a type of bench grinder or pedestal grinder that uses V-belts to transmit power from the motor to the grinding wheels.

Features

Applications

Features

Applications

Features

– Durable
– Long Life
– Easy to Use
– High efficient
– Precision design
– Economical price
– Smooth finishing
– Low Maintenance with High Productivity
– Use of best quality stamping and die cast rotors
– Tool rests are machined to give proper level to the Grinding component
– Dynamically Balanced rotor minimizes vibrations and ensures smooth running
– Adjustable tool rests are provided to ensure maximum usage of grinding wheels

– Swing Frame Design: The swing frame design allows the grinder to swing horizontally or vertically, providing flexibility and accessibility for grinding large and irregularly shaped workpieces.

– Heavy-Duty Construction: Swing frame grinders are built with heavy-duty materials and components to withstand the rigors of continuous use in industrial environments.

– Powerful Motor: These grinders are equipped with powerful motors, typically ranging from 2 to 20 horsepower, providing sufficient torque and speed for heavy grinding tasks.

– Adjustable Speed: Some models offer adjustable speed control, allowing operators to adjust the speed of the grinding wheel to suit different materials and grinding tasks.

– Large Grinding Capacity: Swing frame grinders have a large grinding capacity, making them suitable for grinding and finishing large castings, forgings, and welded structures.

– Versatile Applications: Swing frame grinders are suitable for a wide range of grinding tasks, including grinding, deburring, and finishing metal parts and components in foundries and metalworking facilities.

Applications

– Fabrication
– Steel Industry
– Machine Tools
– Glass Industry
– Casting Industries
– Rubber Industry
– Repairing Works
– Small Workshop
– Ceramic industry
– Lath and Drill bits
– College Workshops
– Hardware Industries
– Automobile industry
– Hand Tool Industries
– Sheet Metal Industry
– Wood Working Industry
-Every Small, Medium Scale machining Industry

– Foundry Operations: Swing frame grinders are commonly used in foundries for grinding and finishing castings, forgings, and welded structures, including gates, risers, and sprues.

– Metalworking: They find applications in metalworking facilities for grinding and finishing large metal parts and components, including weldments, machine bases, and structural steel.

– Shipbuilding: They are employed in shipbuilding yards for grinding and finishing ship components, including hulls, decks, and bulkheads.

– Railway Manufacturing: They find applications in railway manufacturing facilities for grinding and finishing rail components, including rails, switches, and crossings.

In summary, swing frame grinders are heavy-duty grinding machines designed for grinding and finishing large workpieces in foundries, metalworking facilities, and other industrial environments. Their swing frame design, heavy-duty construction, and powerful motor make them indispensable tools for achieving precise and high-quality finishes on large and irregularly shaped metal parts and components.

Specifications
