20mm Pillar Drill Machine Manufacturer in India. Ramato is Leading Manufacturer and Exporter of Naya Bharat (INDIA). We are Manufacturing and Exporting All Type of Pillar Drilling Machine, Radial Drilling Machine, Drilling Cum Tapping Machine, Milling Cum Drilling Machine, CNC and Auto feed Drilling Machine etc
Ramato (Rajkot, Gujarat, BHARAT) Working with the support of our knowledgeable workforce, we are acknowledged for manufacturing and supplying 20 MM Geared Pillar Drilling Machine.
In most of the Fabrication Units, Small Workshop, Ceramic industry, Construction Sites, Automobile industry, Mechanical Workshop, Sheet Metal Industry, Wood Working Industry, The machine is required for performing drilling of different materials like concrete, stone, Casting, MS, wood, metal sheet and plastic etc
Majority of our clients highly acclaimed this 20mm pillar drilling machine for its durability, high efficiency, reliability, dimensional accuracy and high strength.
The rigid structure offers vibration free performance. All the machinery parts are smoothly finished with grinding property in 20mm geared pillar drill machine so as to close tolerance and heighten the overall machining performance.
20 MM Geared Pillar Drill Machine is rigidly checked on different quality parameters under the guidance of our professionals.
– Spindle Ram trim Alloy steel
– Main gear and pulley are perfectly balanced
– Main Spindle and pinion made from EN steel
– Quality bearings with grease bath, so for permanent oiling
– Work-head & gears made from fitness closed grain cast iron
– Chrome accessories for longer life and preventing of corrosion
– All moving parts are fine-finished with grinding to a close tolerance
– Geared Transmission: Geared transmission provides increased torque and power, allowing the drill to efficiently handle larger drill bits and tougher materials.
– 20mm Chuck Capacity: The machine is equipped with a chuck capable of holding drill bits with shank diameters up to 20mm, enabling drilling of larger diameter holes.
– Variable Speed Control: Many geared pillar drill machines offer variable speed control, allowing users to adjust the drilling speed to match the material being drilled and the size of the drill bit.
– Adjustable Table: The table can be adjusted for height and tilt, providing flexibility for drilling at different angles and accommodating various workpiece sizes.
– Fabrication
– Glass Industry
– Plastic Industry
– Small Workshop
– Repairing Works
– Ceramic industry
– College Workshops
– Automobile industry
– Sheet Metal Industry
– Mechanical Workshop
– Wood Working Industry
– Every Small, Medium And Large Scale machining Industry
– Metalworking: Geared pillar drill machines are commonly used in metalworking industries for drilling precise holes in metal sheets, plates, and structural components for fabrication, assembly, and machining processes.
– Manufacturing: Geared pillar drills are essential tools in manufacturing facilities for drilling precise holes in components and parts used in machinery, equipment, and product assembly.
Overall, a Ramato 20mm geared pillar drill machine offers enhanced drilling capacity, power, and precision, making it suitable for a wide range of industrial, commercial, and DIY applications where accurate and efficient drilling is required.
Features
– Spindle Ram trim Alloy steel
– Main gear and pulley are perfectly balanced
– Main Spindle and pinion made from EN steel
– Quality bearings with grease bath, so for permanent oiling
– Work-head & gears made from fitness closed grain cast iron
– Chrome accessories for longer life and preventing of corrosion
– All moving parts are fine-finished with grinding to a close tolerance
– Geared Transmission: Geared transmission provides increased torque and power, allowing the drill to efficiently handle larger drill bits and tougher materials.
– 20mm Chuck Capacity: The machine is equipped with a chuck capable of holding drill bits with shank diameters up to 20mm, enabling drilling of larger diameter holes.
– Variable Speed Control: Many geared pillar drill machines offer variable speed control, allowing users to adjust the drilling speed to match the material being drilled and the size of the drill bit.
– Adjustable Table: The table can be adjusted for height and tilt, providing flexibility for drilling at different angles and accommodating various workpiece sizes.
Applications
– Fabrication
– Glass Industry
– Plastic Industry
– Small Workshop
– Repairing Works
– Ceramic industry
– College Workshops
– Automobile industry
– Sheet Metal Industry
– Mechanical Workshop
– Wood Working Industry
– Every Small, Medium And Large Scale machining Industry
– Metalworking: Geared pillar drill machines are commonly used in metalworking industries for drilling precise holes in metal sheets, plates, and structural components for fabrication, assembly, and machining processes.
– Manufacturing: Geared pillar drills are essential tools in manufacturing facilities for drilling precise holes in components and parts used in machinery, equipment, and product assembly.
Overall, a Ramato 20mm geared pillar drill machine offers enhanced drilling capacity, power, and precision, making it suitable for a wide range of industrial, commercial, and DIY applications where accurate and efficient drilling is required.

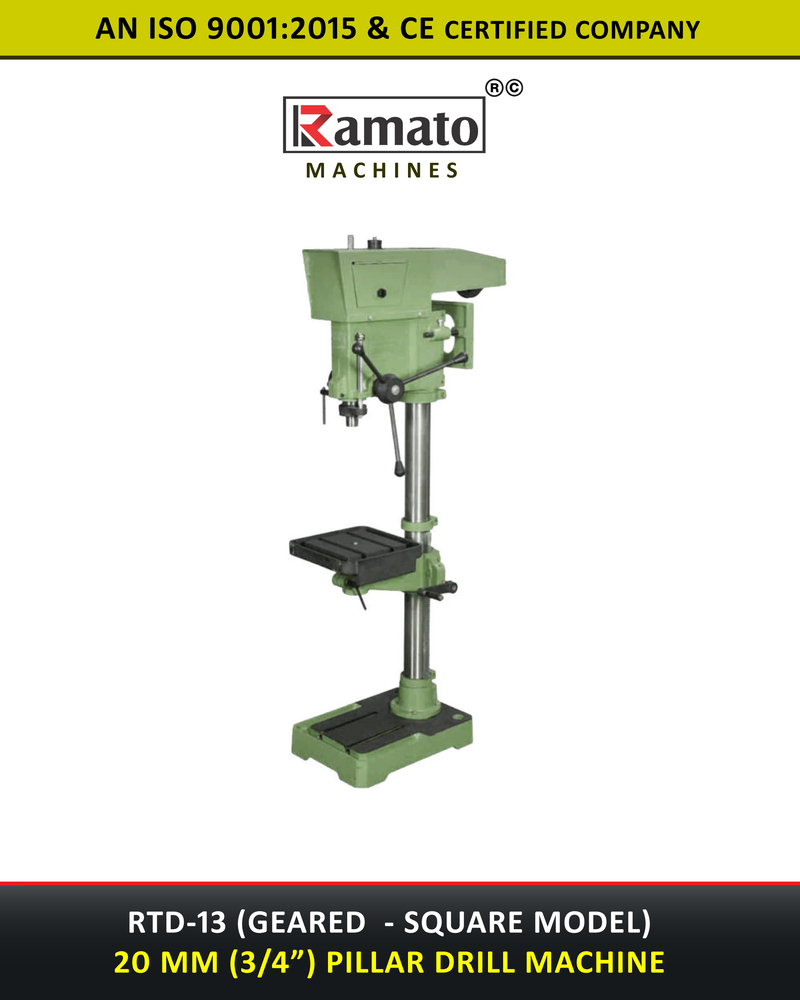

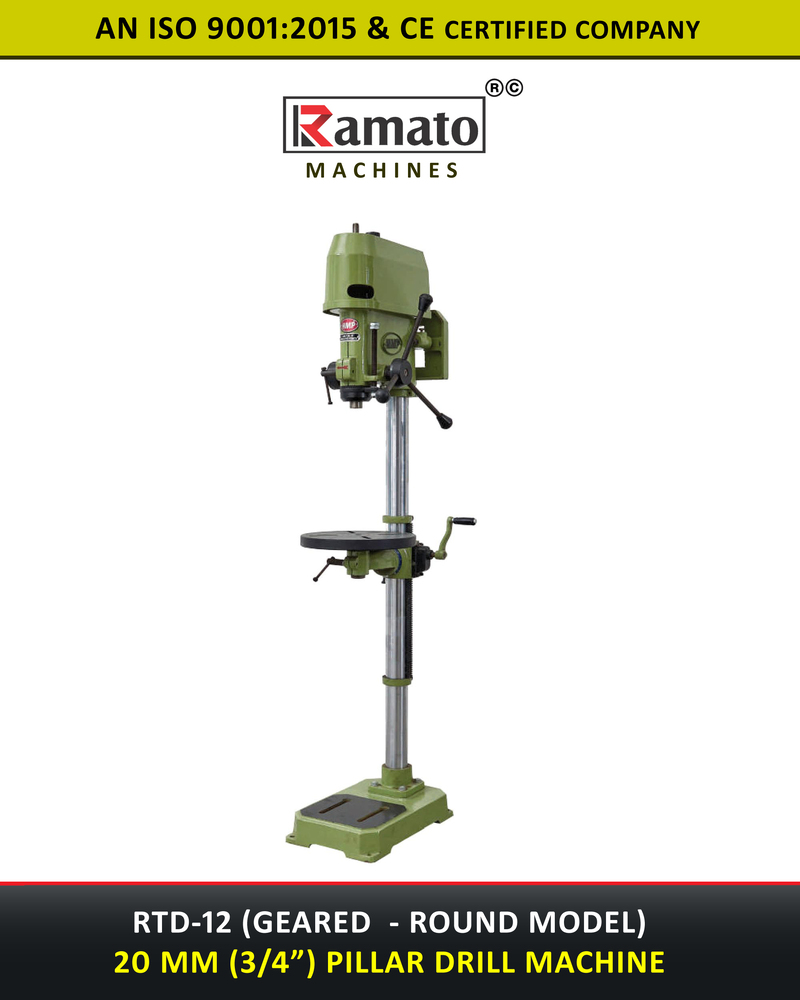

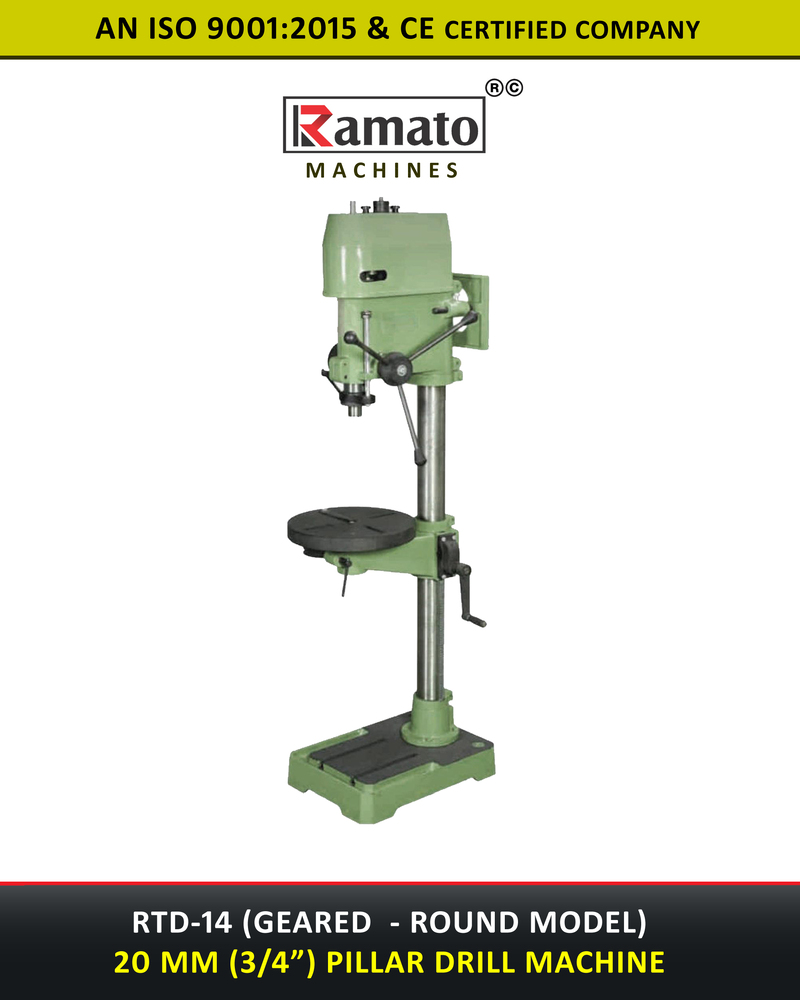

| MODEL | RTD-11 ROUND | RTD-12 ROUND | RTD-13 L SQUARE | RTD-13 SQUARE | RTD-14 ROUND |
| DRILLING CAPACITY | 20 mm | 20 mm | 20 mm | 20 mm | 20 mm |
| SPINDLE SPEED | Six Speed | Eight Speed | Eight Speed | Eight Speed | Eight Speed |
| SPEED RANGE | 90 to 2800 | 90 to 2800 | 90 to 2800 | 87 to 3600 | 87 to 3600 |
| SPINDLE NOSE | MT-2 | MT-2 | MT-3 | MT-3 | MT-3 |
| SPINDLE CENTRE TO COLUMN | 150 mm | 170 mm | 200 mm | 200 mm | 200 mm |
| SPINDLE TRAVEL | 100 mm | 130 mm | 150 mm | 150 mm | 150 mm |
| MAXI. DISTANCE SPINDLE TO TABLE | 500 mm | 700 mm | 650 mm | 650 mm | 650 mm |
| MAXI. DISTANCE SPINDLE TO BASE | 700 mm | 900 mm | 940 mm | 940 mm | 940 mm |
| ¥/0RKING SURFACE OF BASE | 220 x 280 mm | 255 x 245 mm | 290 x 290 mm | 320 x 320 mm | 320 x 320 mm |
| WORKING SURFACE OF TABLE | 230 mm Round | 270 mm Round | 300 mm Round | 280 x 280 mm | 310 mm Round |
| COLUMN DIAMETER | 58 mm | 58 mm | 58 mm | 74 mm | 74 mm |
| MACHINE BASE | 380 x 220 mm | 390 x 245 mm | 470 x 290 mm | 470 x 320 mm | 470 x 320 mm |
| MOTOR HP | 1 HP | 1 HP | 1 HP | 1.5 HP | 1.5 HP |
| MOTOR RPM | 1440 RPM | 1440 RPM | 1440 RPM | 1440 RPM | 1440 RPM |
| V-BELT SIZE | A-36 | A-39 | A-42 | A-44 | A-44 |
| WEIGHT OF MACHINE (APPROX.) | 50 Kg. | 65 Kg. | 80 Kg. | 110 Kg. | 110 Kg. |
