Ramato – Rajkot, Gujarat, BHARAT plays a significant role in workshop device supply. We Manufacturing and Exporting wide range of 25mm pillar drilling machining components which are supportive in several industries to carry out multiple machining operations.
Drilling remains one of the important machining aspects required in metal, automotive and similar industries and we provide high precision pillar drill machine to match accurate boring requisites. Our tool is designed as per industrial standards and provided with rough construction to fulfil optimum machining performance expected in different industries.
It is featured with easier operational modes at the same time can be depended on for accurate drilling. It is flawless in machining and stays durable in quality. We offer an impeccable range of precisely designed 25mm Pillar Drilling Machine which is known for its high efficiency, smooth functioning, non-interrupted performance, easy operation, resistance to corrosion and longer service life.
25mm drilling provided machine is stringently tested by our quality professionals on defined parameters of quality or can be availed in plethora of technical specifications.
Our offered 25mm drill machines are used in various applications related to drilling operations on industrial components.
Apart from this, our valued customer can avail this 25mm Pillar Drilling Machine from us at market leading prices.
– Parts Properly Balanced
– Rigid machine structure
– Reduced maintenance cost
– Offers vibration free machining
– Easily & readily available spare parts
– All Moving Parts Finished to Close Tolerance
– Spindle & Pinion are made out of 20MNCr5 Steel
– For extra rigidity & stability machine base is reinforced by ribs
– The RAM is made from special alloy steel pipe of more thickness
– Octagonal shape Pillar bracket acts like rib providing more rigidity
– 25mm Chuck Capacity: The machine is equipped with a chuck capable of holding drill bits with shank diameters up to 25mm, enabling drilling of larger diameter holes.
– Powerful Motor: With a powerful motor, the machine can deliver sufficient torque and power to drive large drill bits through various materials, including metal, wood, plastic, and more.
– Variable Speed Control: Many 25mm pillar drilling machines offer variable speed control, allowing users to adjust the drilling speed to match the material being drilled and the size of the drill bit.
– Geared Transmission: Geared transmission provides increased torque and power, allowing the drill to efficiently handle larger drill bits and tougher materials.
– Adjustable Table: The table can be adjusted for height and tilt, providing flexibility for drilling at different angles and accommodating various workpiece sizes.
– Depth Stop: A depth stop feature allows users to set precise drilling depths, ensuring uniform hole depths across multiple workpieces.
– Safety Features: Safety features such as emergency stop buttons, spindle guards, and overload protection are often incorporated to ensure safe operation.
– Sturdy Construction: Built with sturdy materials and construction, the machine offers stability and durability, even during heavy-duty drilling operations.
– Fabrication
– Glass Industry
– Plastic Industry
– Small Workshop
– Repairing Works
– Ceramic industry
– Construction Sites
– College Workshops
– Automobile industry
– Sheet Metal Industry
– Mechanical Workshop
– Wood Working Industry
– Engineering Goods Production Workshop
– Every Small, Medium And Large Scale machining Industry
– Metalworking: 25mm pillar drilling machines are commonly used in metalworking industries for drilling precise holes in metal sheets, plates, and structural components for fabrication, assembly, and machining processes.
– Woodworking: In woodworking applications, the machine is utilized for drilling holes in wooden boards, planks, and panels to create joinery, furniture components, and decorative features.
– Manufacturing: 25mm pillar drills are essential tools in manufacturing facilities for drilling precise holes in components and parts used in machinery, equipment, and product assembly.
– Maintenance and Repair: The versatility and power of 25mm pillar drilling machines make them valuable for maintenance and repair tasks across various industries, including automotive, aerospace, and machinery maintenance.
Overall, a Ramato 25mm pillar drilling machine offers enhanced drilling capacity, power, and precision, making it suitable for a wide range of industrial, commercial, and DIY applications where accurate and efficient drilling is required, especially when dealing with larger workpieces and tougher materials.
Features
– Parts Properly Balanced
– Rigid machine structure
– Reduced maintenance cost
– Offers vibration free machining
– Easily & readily available spare parts
– All Moving Parts Finished to Close Tolerance
– Spindle & Pinion are made out of 20MNCr5 Steel
– For extra rigidity & stability machine base is reinforced by ribs
– The RAM is made from special alloy steel pipe of more thickness
– Octagonal shape Pillar bracket acts like rib providing more rigidity
– 25mm Chuck Capacity: The machine is equipped with a chuck capable of holding drill bits with shank diameters up to 25mm, enabling drilling of larger diameter holes.
– Powerful Motor: With a powerful motor, the machine can deliver sufficient torque and power to drive large drill bits through various materials, including metal, wood, plastic, and more.
– Variable Speed Control: Many 25mm pillar drilling machines offer variable speed control, allowing users to adjust the drilling speed to match the material being drilled and the size of the drill bit.
– Geared Transmission: Geared transmission provides increased torque and power, allowing the drill to efficiently handle larger drill bits and tougher materials.
– Adjustable Table: The table can be adjusted for height and tilt, providing flexibility for drilling at different angles and accommodating various workpiece sizes.
– Depth Stop: A depth stop feature allows users to set precise drilling depths, ensuring uniform hole depths across multiple workpieces.
– Safety Features: Safety features such as emergency stop buttons, spindle guards, and overload protection are often incorporated to ensure safe operation.
– Sturdy Construction: Built with sturdy materials and construction, the machine offers stability and durability, even during heavy-duty drilling operations.
Applications
– Fabrication
– Glass Industry
– Plastic Industry
– Small Workshop
– Repairing Works
– Ceramic industry
– Construction Sites
– College Workshops
– Automobile industry
– Sheet Metal Industry
– Mechanical Workshop
– Wood Working Industry
– Engineering Goods Production Workshop
– Every Small, Medium And Large Scale machining Industry
– Metalworking: 25mm pillar drilling machines are commonly used in metalworking industries for drilling precise holes in metal sheets, plates, and structural components for fabrication, assembly, and machining processes.
– Woodworking: In woodworking applications, the machine is utilized for drilling holes in wooden boards, planks, and panels to create joinery, furniture components, and decorative features.
– Manufacturing: 25mm pillar drills are essential tools in manufacturing facilities for drilling precise holes in components and parts used in machinery, equipment, and product assembly.
– Maintenance and Repair: The versatility and power of 25mm pillar drilling machines make them valuable for maintenance and repair tasks across various industries, including automotive, aerospace, and machinery maintenance.
Overall, a Ramato 25mm pillar drilling machine offers enhanced drilling capacity, power, and precision, making it suitable for a wide range of industrial, commercial, and DIY applications where accurate and efficient drilling is required, especially when dealing with larger workpieces and tougher materials.

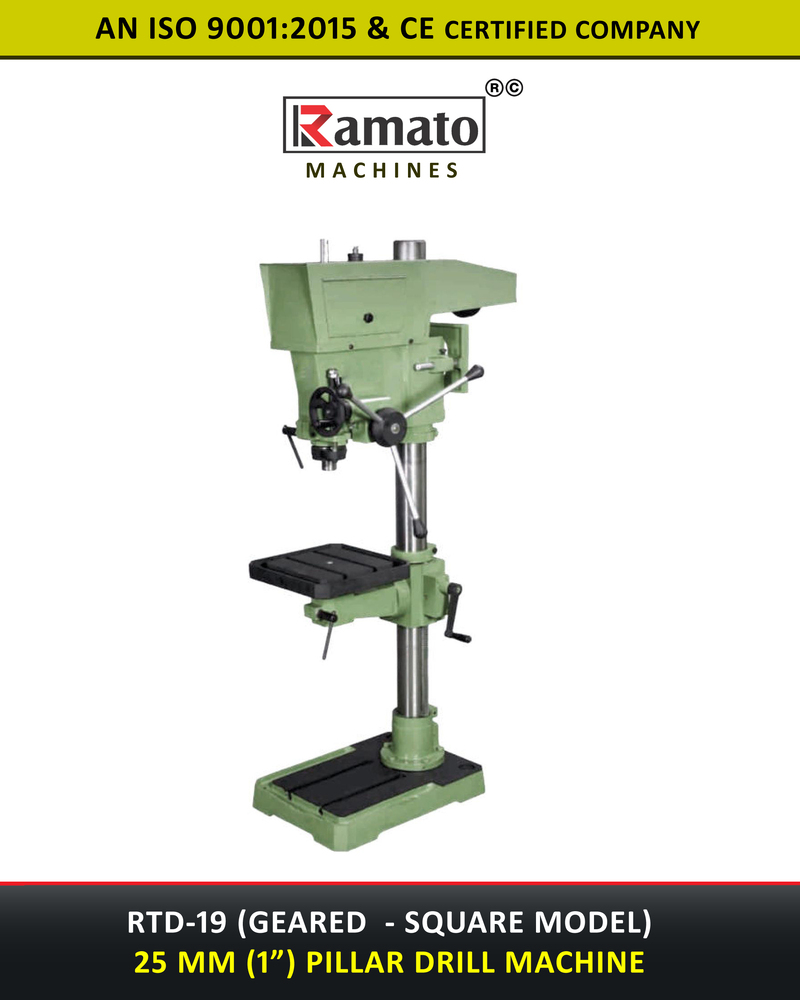

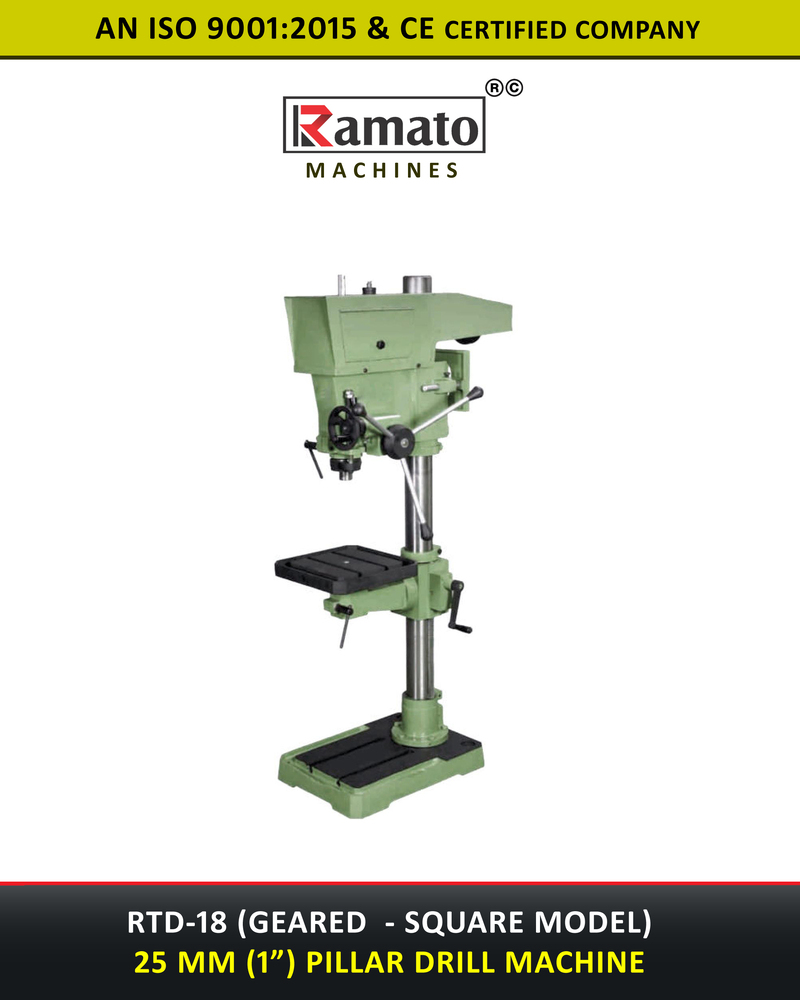

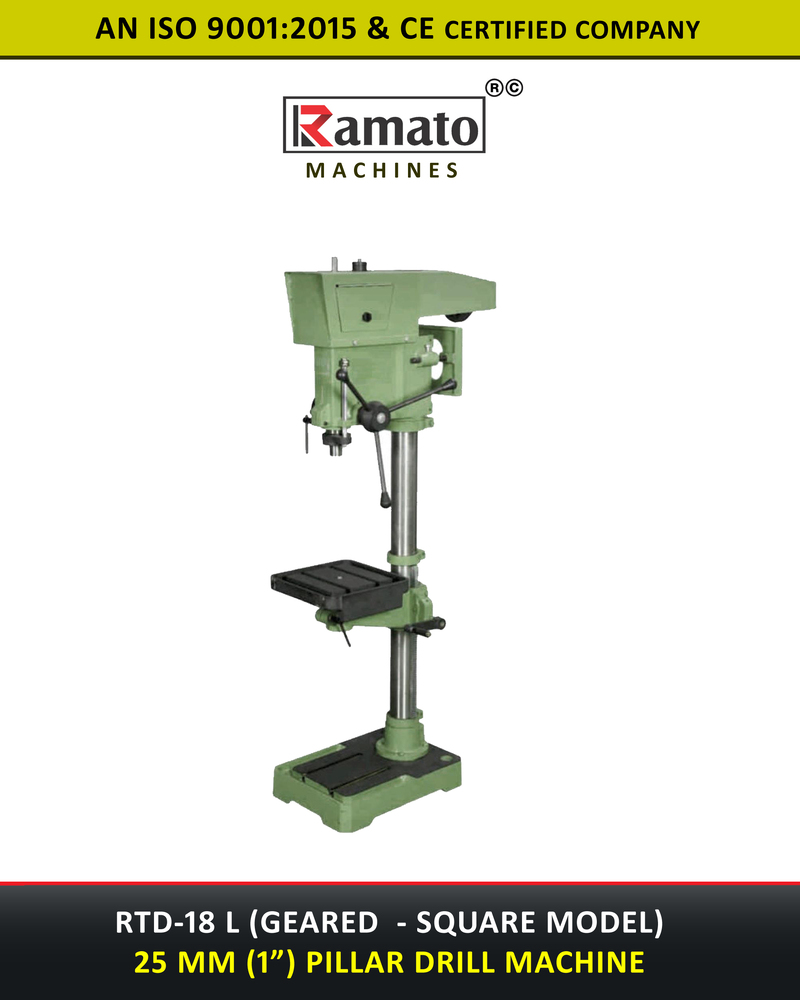

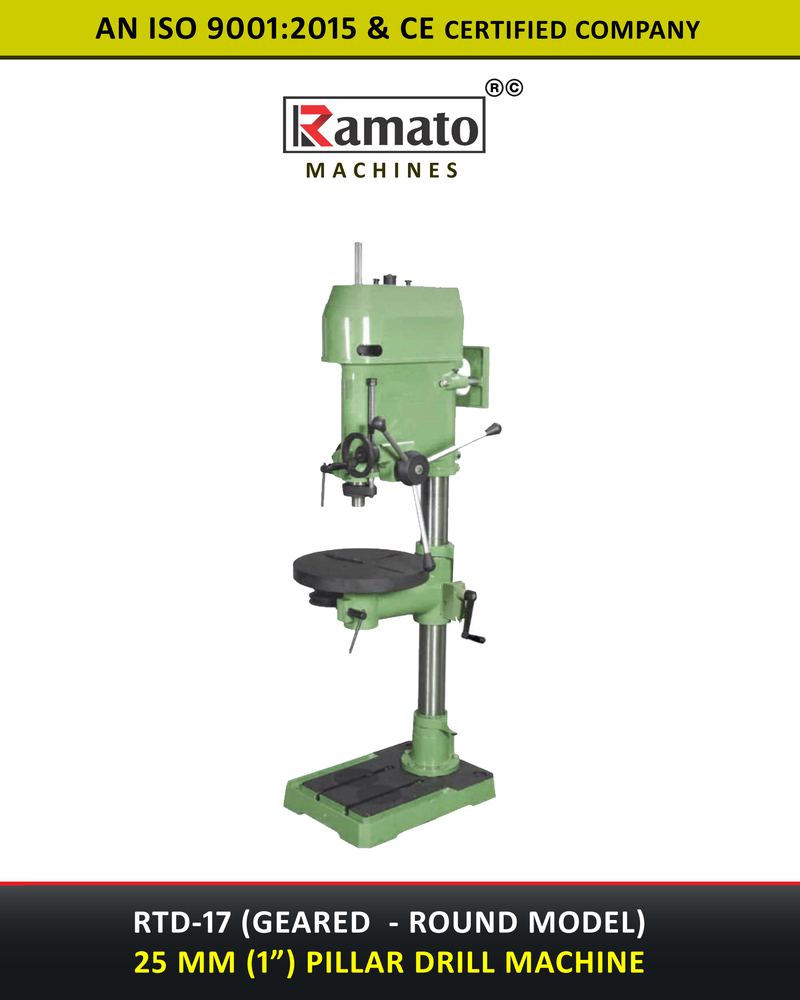

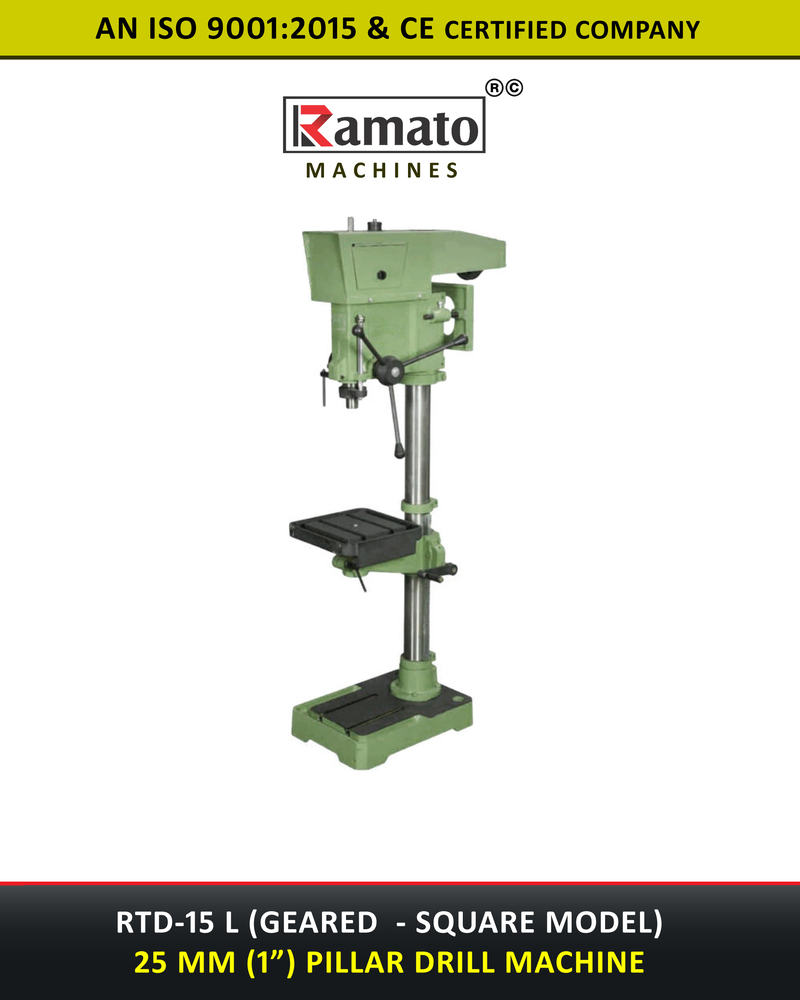

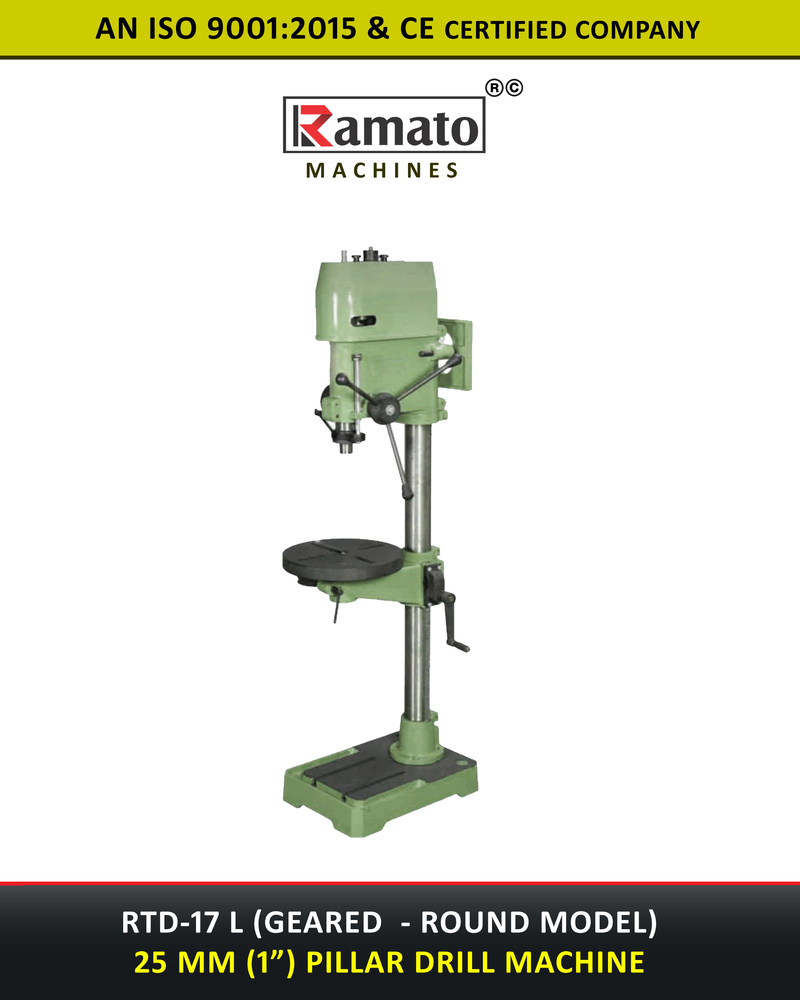

| MODEL | RTD-12 H | RTD-15 L | RTD-15 | RTD-16 | RTD-17 L | RTD-18 L | RTD-17 | RTD-18 | RTD-19 |
| MODEL | ROUND | SOUARE | SOUARE | ROUND | ROUND | SOUARE | ROUND | SOUARE | SOUARE |
| DR|LMNG CAPAOTY | 25mm | 25mm | 25mm | 25mm | 25mm | 25mm | 25mm | 25mm | 25mm |
| SPINDLE SPEED | Eight Speed | Eight Speed | Eight Speed | Eight Speed | Eight Speed | Eight Speed | Eight Speed | Eight Speed | Eight Speed |
| SPEED RANGE | 90 to 2800 | 87 to 3600 | 87 to 3600 | 87 to 3600 | 87 to 3600 | 87 to 3600 | 87 to 3600 | 87 to 3600 | 120 to 2800 |
| SPINDLE tI0SE | MT-3 | MT-3 | MT-3 | MT-3 | MT-3 | MT-3 | MT-3 | MT-3 | MT-4 |
| SPINDLE CENTRE TO COLUMN | 170 mm | 200 mm | 200 mm | 200 mm | 250 mm | 250 mm | 250 mm | 250 mm | 250 mm |
| SPINDLE TRAVEL | 130 mm | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm | 155 mm |
| MAXI. DISTANCE SPINDLE TO TABLE | 700 mm | 650 mm | 650 mm | 650 mm | 650 mm | 650 mm | 930 mm | 930 mm | 830 mm |
| MAXI. DISTANCE SPINDLE TO BASE | 900 mm | 940 mm | 940 mm | 940 mm | 940 mm | 940 mm | 1200 mm | 1200 mm | 1050 mm |
| WORKING SURFACE OF BASE | 255 x 245 | 290 x 290 | 320 x 320 | 320 x 320 | 320 x 320 | 320 x 320 | 360 x 400 | 360 x 400 | 360 x 400 |
| WORKING SURFACE OF TABLE | 270 mm Round | 300 mm Round | 280 x 280 | 310 mm Round | 310 mm Round | 280 x 280 | 395 mm Round | 320 x 320 | 330 x 330 |
| COLUMN DIAMETER | 58 mm | 58 mm | 74 mm | 74 mm | 74 mm | 74 mm | 74 mm | 74 mm | 87 mm |
| MAGfllNEBASE | 390×245 | 470×290 | 470×320 | 470×320 | 470×320 | 470×320 | 550×380 | 550×380 | 560×400 |
| MOTOR HP | 1 HP | 1 HP | 1.5 HP | 1.5 HP | 1.5 HP | 1.5 HP | 1.5 HP | 1.5 HP | 1.5 HP |
| MOTOR RPM | 1440 RPM | 1440 RPM | 1440 RPM | 1440 RPM | 1440 RPM | 1440 RPM | 1440 RPM | 1440 RPM | 1440 RPM |
| V-BELT SIZE | A-39 | A-42 | A-44 | A-44 | B-52 | B-52 | B-52 | B-52 | B-52 |
| WEIGHT OF MACHINE (APPROX.) | 65 Kg. | 80 Kg. | 110 Kg. | 110 Kg. | 145 Kg. | 150 Kg. | 155 Kg. | 160 Kg. | 200 Kg. |
