Ramato Machines (Rajkot, Gujarat) is INDIA’s First Manufacturing Supplier of This Mini Radial Drilling Machine.
Working with the support of our knowledgeable workforce, we are acknowledged for manufacturing and supplying Mini Radial Drill Machine. In most of the Fabrication Units, Small Workshop, Ceramic industry, Construction Sites, Automobile industry, Mechanical Workshop, Sheet Metal Industry, Wood Working Industry.
The mini radial drill machine is required for performing drilling of different materials like concrete, stone, Casting, MS, wood, metal sheet and plastic. Majority of our clients highly acclaimed this machine for its durability, high efficiency, reliability, dimensional accuracy and high strength.
The rigid structure offers vibration free performance. All the machinery parts of mini radial drilling machine are smoothly finished with grinding property so as to close tolerance and heighten the overall machining performance.
RAMATO Make Mini Radial Drilling Machine is rigidly checked on different quality parameters under the guidance of our professionals.
-Parts Properly Balanced
-Rigid machine structure
-Reduced maintenance cost
-Offers vibration free machining
-Easily & readily available spare parts
-All Moving Parts Finished to Close Tolerance
-Parts finished on imported Grinding Machine
-Spindle & Pinion are made out of 20MNCr5 Steel
-Especially designed for fast metal removal rate of lowest cost
-For extra rigidity & stability machine base is reinforced by ribs
-The RAM is made from special alloy steel pipe of more thickness
-Octagonal shape Pillar bracket acts like rib providing more rigidity
– Fabrication
– Glass Industry
– Plastic Industry
– Small Workshop
– Repairing Works
– Ceramic industry
– Construction Sites
– College Workshops
– Automobile industry
– Sheet Metal Industry
– Mechanical Workshop
– Wood Working Industry
– Engineering Goods Production Workshop
– Every Small, Medium And Large Scale machining Industry
Features
-Parts Properly Balanced
-Rigid machine structure
-Reduced maintenance cost
-Offers vibration free machining
-Easily & readily available spare parts
-All Moving Parts Finished to Close Tolerance
-Parts finished on imported Grinding Machine
-Spindle & Pinion are made out of 20MNCr5 Steel
-Especially designed for fast metal removal rate of lowest cost
-For extra rigidity & stability machine base is reinforced by ribs
-The RAM is made from special alloy steel pipe of more thickness
-Octagonal shape Pillar bracket acts like rib providing more rigidity
Applications
– Fabrication
– Glass Industry
– Plastic Industry
– Small Workshop
– Repairing Works
– Ceramic industry
– Construction Sites
– College Workshops
– Automobile industry
– Sheet Metal Industry
– Mechanical Workshop
– Wood Working Industry
– Engineering Goods Production Workshop
– Every Small, Medium And Large Scale machining Industry

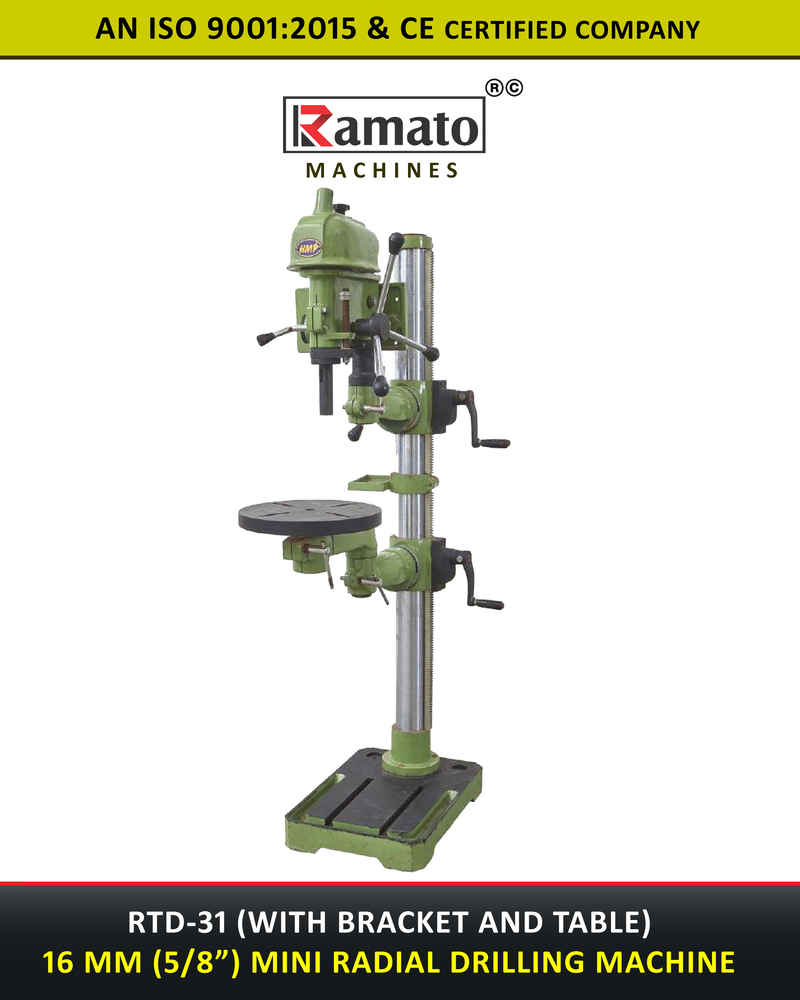

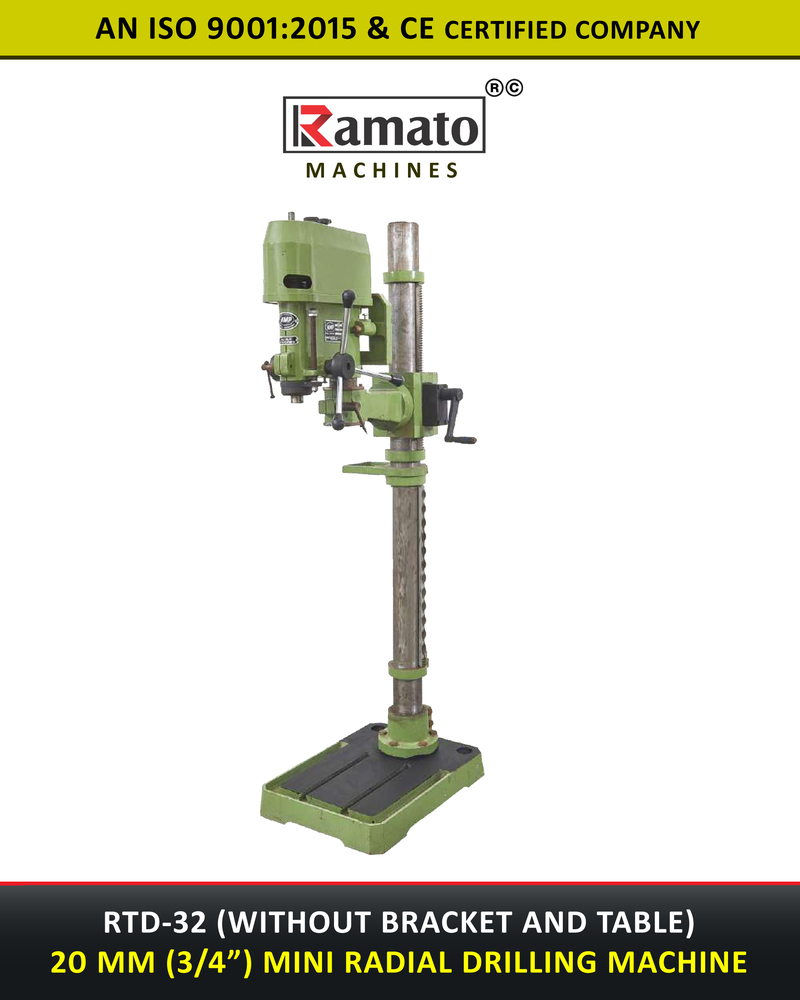

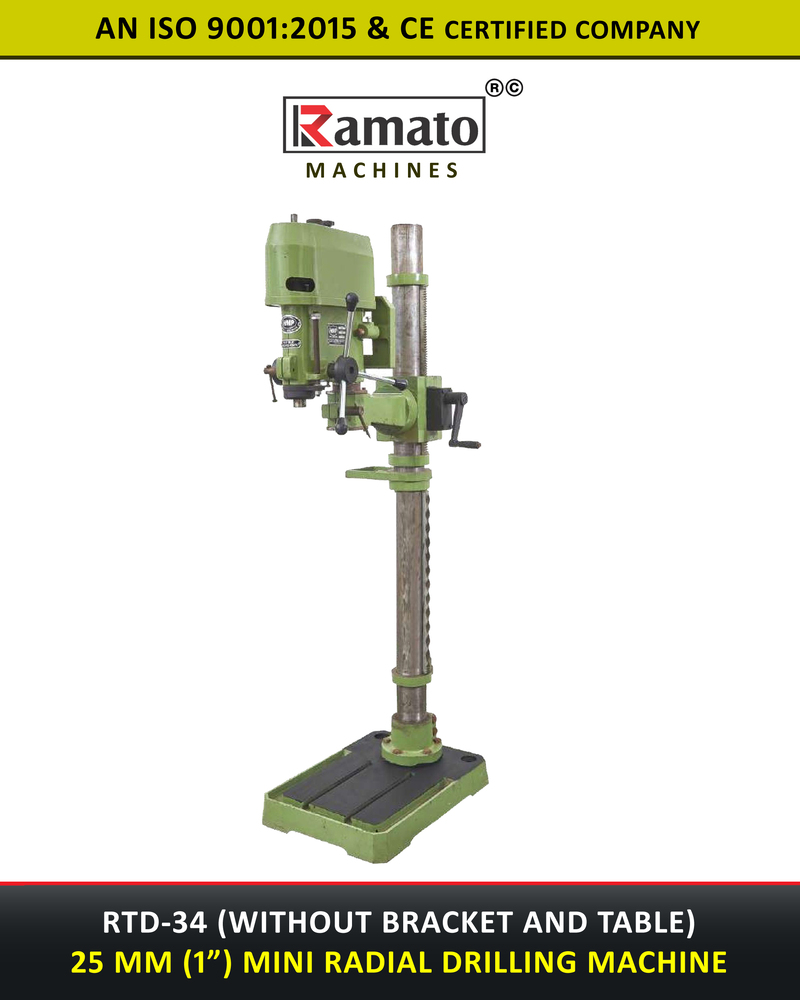

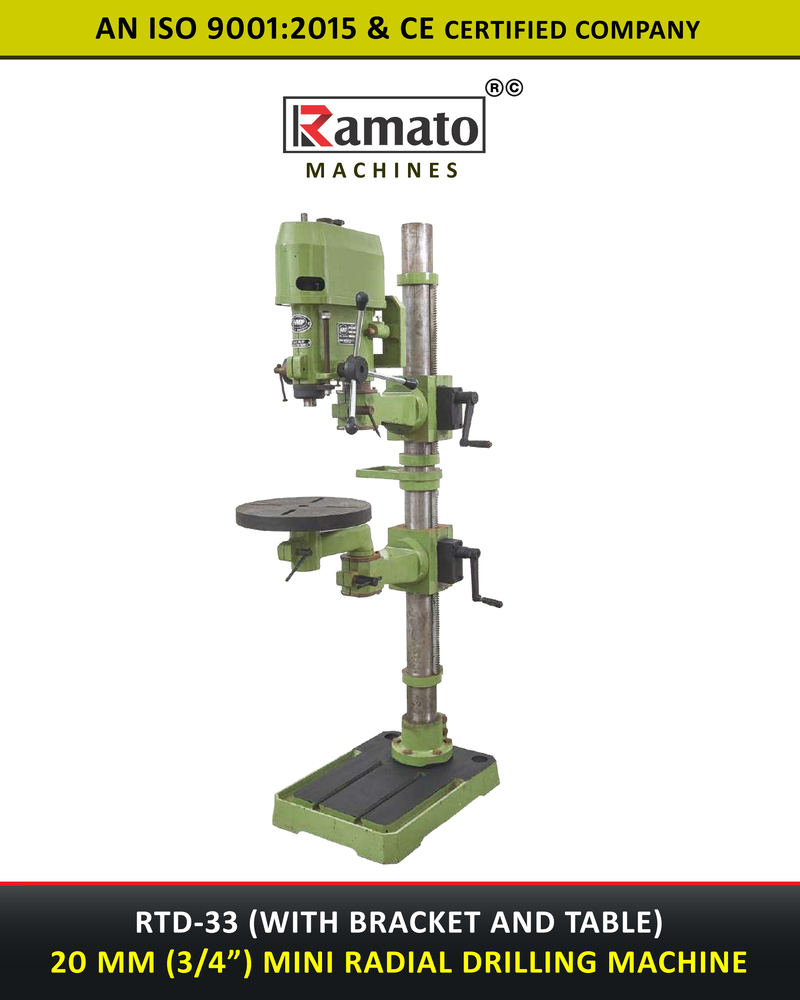

| MODEL | RTD-30 | RTD-31 | RTD-32 | RTD-33 | RTD-34 | RTD-35 |
| DRILLING CAPACITY | 16 mm | 16 mm | 20 mm | 20 mm | 25 mm | 40 mm |
| GEAR TYPE | Gearless | Gearless | Geared | Geared | Geared | Geared |
| WORKING TABLE & BRACKET | Without Table | With Table | Without Table | With Table | Without Table | With Table |
| SPINDLE SPEED | Four Speed | Four Speed | Eight Speed | Eight Speed | Eight Speed | Eight Speed |
| SPEED RANGE | 500 to 2800 | 500 to 2800 | 90 to 2800 | 90 to 2800 | 120 to 2800 | 120 to 2800 |
| SPINDLE NOSE | MT-2 | MT-2 | MT-2 | MT-2 | MT-3 | MT-4 |
| SPINDLE CENTRE TO COLUMN | 380 mm (15”) | 380 mm (15”) | 450 mm (18”) | 450 mm (18”) | 450 mm (18”) | 550 mm (22”) |
| SPINDLE TRAVEL | 75 mm (3”) | 75 mm (3”) | 100 mm (4”) | 100 mm (4”) | 150 mm (6”) | 250 mm (10”) |
| MAXI. DISTANCE SPINDLE TO BASE | As Per Order | As Per Order | As Per Order | As Per Order | As Per Order | As Per Order |
| DISTANCE CENTER TO COLUME | As Per Order | As Per Order | As Per Order | As Per Order | As Per Order | As Per Order |
| WORKING SURFACE OF BASE | 320 x 320 mm | 320 x 320 mm | 320 x 320 mm | 320 x 320 mm | 360 x 400 mm | 420 x 420 mm |
| WORKING SURFACE OF TABLE | NA | 280 mm Round | NA | 280 mm Round | NA | 330 x 330 mm |
| COLUMN DIAMETER | 74 mm | 74 mm | 74 mm | 74 mm | 87 mm | 100 mm |
| MACHINE BASE | 470 x 320 mm | 470 x 320 mm | 470 x 320 mm | 470 x 320 mm | 560 x 400 mm | 645 x 420 mm |
| MOTOR HP | 0.5 HP | 0.5 HP | 1 HP | 1 HP | 1.5 HP | 1.5 HP |
| MOTOR RPM | 1440 RPM | 1440 RPM | 1440 RPM | 1440 RPM | 1440 RPM | 1440 RPM |
| V-BELT SIZE | FHP-2340 | FHP-2340 | A-39 | A-39 | B-52 | B-60 |
