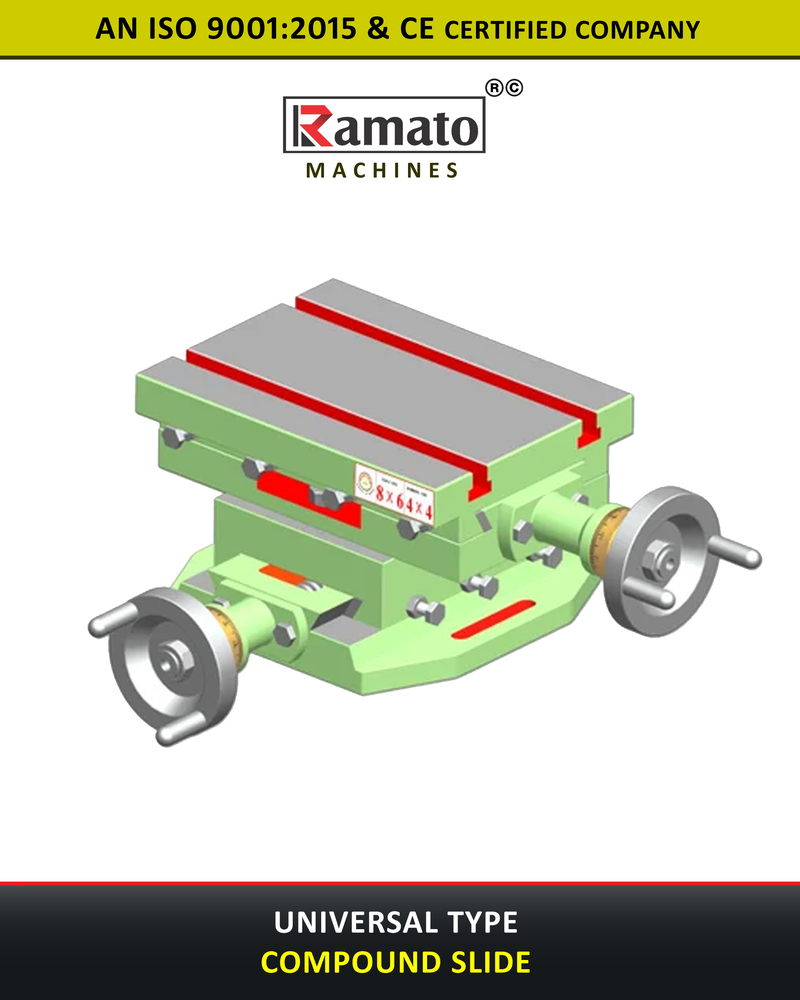

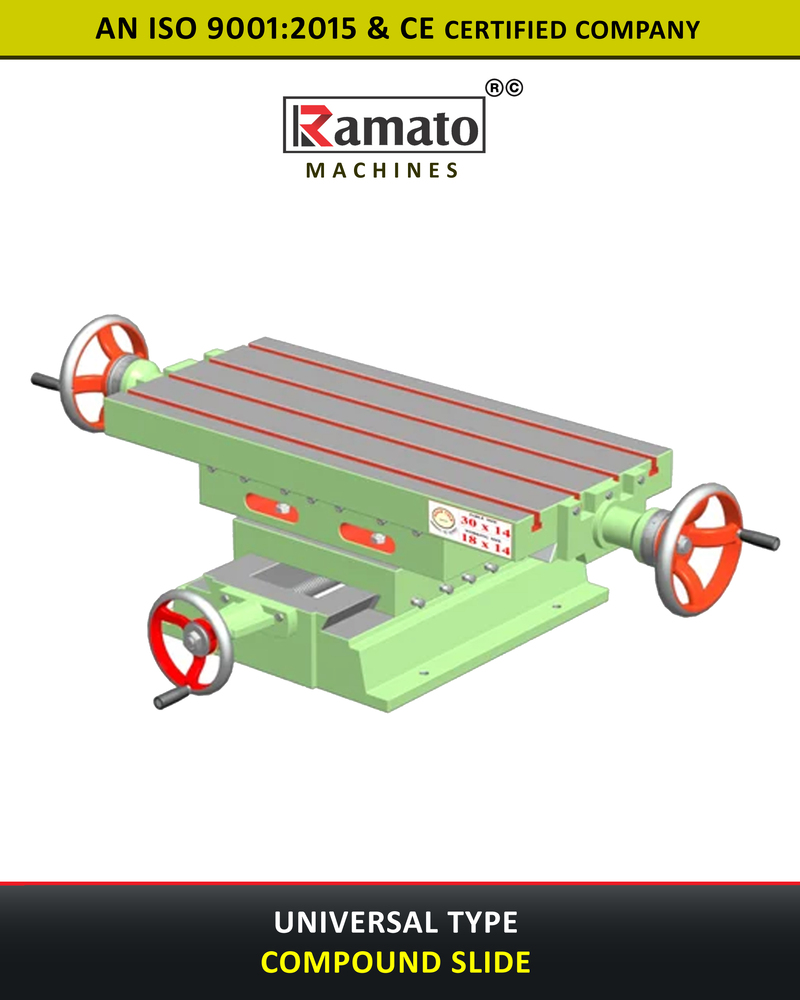

Ramato is Leading Manufacturer and Exporter of Compound Cross Milling Slides From Rajkot Gujarat Bharat (INDIA). A Ramato Make compound slide, also known as a compound table or compound cross slide, is a versatile accessory commonly found on milling machines, drill presses, and other machine tools. It provides additional axes of movement beyond the primary X, Y, and Z axes of the machine, allowing for increased versatility and precision in machining operations.
Multiple Axes of Movement: A compound slide typically provides movement along two orthogonal axes perpendicular to the primary X and Y axes of the machine. These axes are often labeled as the compound X and compound Y axes.
Adjustable Gibs: Compound slides often feature adjustable gibs to ensure smooth and precise movement along each axis. These gibs can be tightened or loosened to control the amount of clearance between sliding surfaces, minimizing backlash and maintaining accuracy.
T-slots: Compound slides may include T-slots on the base or sides, allowing for the attachment of additional accessories such as vices, rotary tables, or fixtures. This expands the versatility of the machine and enables a wider range of machining operations.
Precision Machined Surfaces: The sliding surfaces of the compound slide are typically precision-machined to ensure flatness, parallelism, and smooth movement. This helps maintain accuracy and repeatability during machining.
Precision Milling: Compound slides are commonly used in milling operations to accurately position the workpiece relative to the cutting tool. They enable precise milling of complex shapes, contours, and features on a wide range of materials.
Drilling Operations: In drilling applications, compound slides allow for precise positioning of the workpiece, ensuring accurate hole placement and alignment. They are particularly useful for drilling holes at specific angles or in tight spaces.
Grinding and Finishing: Compound slides can be used in grinding and finishing operations to hold workpieces securely and position them for precise grinding or finishing passes.
Education and Training: Compound slides are commonly used in educational settings such as technical schools or workshops to teach students about advanced machining techniques, work holding principles, and coordinate system operations.
Overall, compound slides are essential accessories for enhancing the capabilities of milling machines, drill presses, and other machine tools, enabling precise positioning and movement in multiple axes for a wide range of machining applications.
Features
Multiple Axes of Movement: A compound slide typically provides movement along two orthogonal axes perpendicular to the primary X and Y axes of the machine. These axes are often labeled as the compound X and compound Y axes.
Adjustable Gibs: Compound slides often feature adjustable gibs to ensure smooth and precise movement along each axis. These gibs can be tightened or loosened to control the amount of clearance between sliding surfaces, minimizing backlash and maintaining accuracy.
T-slots: Compound slides may include T-slots on the base or sides, allowing for the attachment of additional accessories such as vices, rotary tables, or fixtures. This expands the versatility of the machine and enables a wider range of machining operations.
Precision Machined Surfaces: The sliding surfaces of the compound slide are typically precision-machined to ensure flatness, parallelism, and smooth movement. This helps maintain accuracy and repeatability during machining.
Applications
Precision Milling: Compound slides are commonly used in milling operations to accurately position the workpiece relative to the cutting tool. They enable precise milling of complex shapes, contours, and features on a wide range of materials.
Drilling Operations: In drilling applications, compound slides allow for precise positioning of the workpiece, ensuring accurate hole placement and alignment. They are particularly useful for drilling holes at specific angles or in tight spaces.
Grinding and Finishing: Compound slides can be used in grinding and finishing operations to hold workpieces securely and position them for precise grinding or finishing passes.
Education and Training: Compound slides are commonly used in educational settings such as technical schools or workshops to teach students about advanced machining techniques, work holding principles, and coordinate system operations.
Overall, compound slides are essential accessories for enhancing the capabilities of milling machines, drill presses, and other machine tools, enabling precise positioning and movement in multiple axes for a wide range of machining applications.
| TABLE SIZE | WORKING SIZE |
| 6” X 8” | 4” X 4” |
| 8” x 8” | 4” x 4” |
| 10” x 10” | 6” x 6” |
| 8” x 12” | 7” x 7” |
| 12” x 12” | 7” x 7” |
| 12” x 20” | 8” x 12” |
| 20” x 20” | 9” x 12” |
