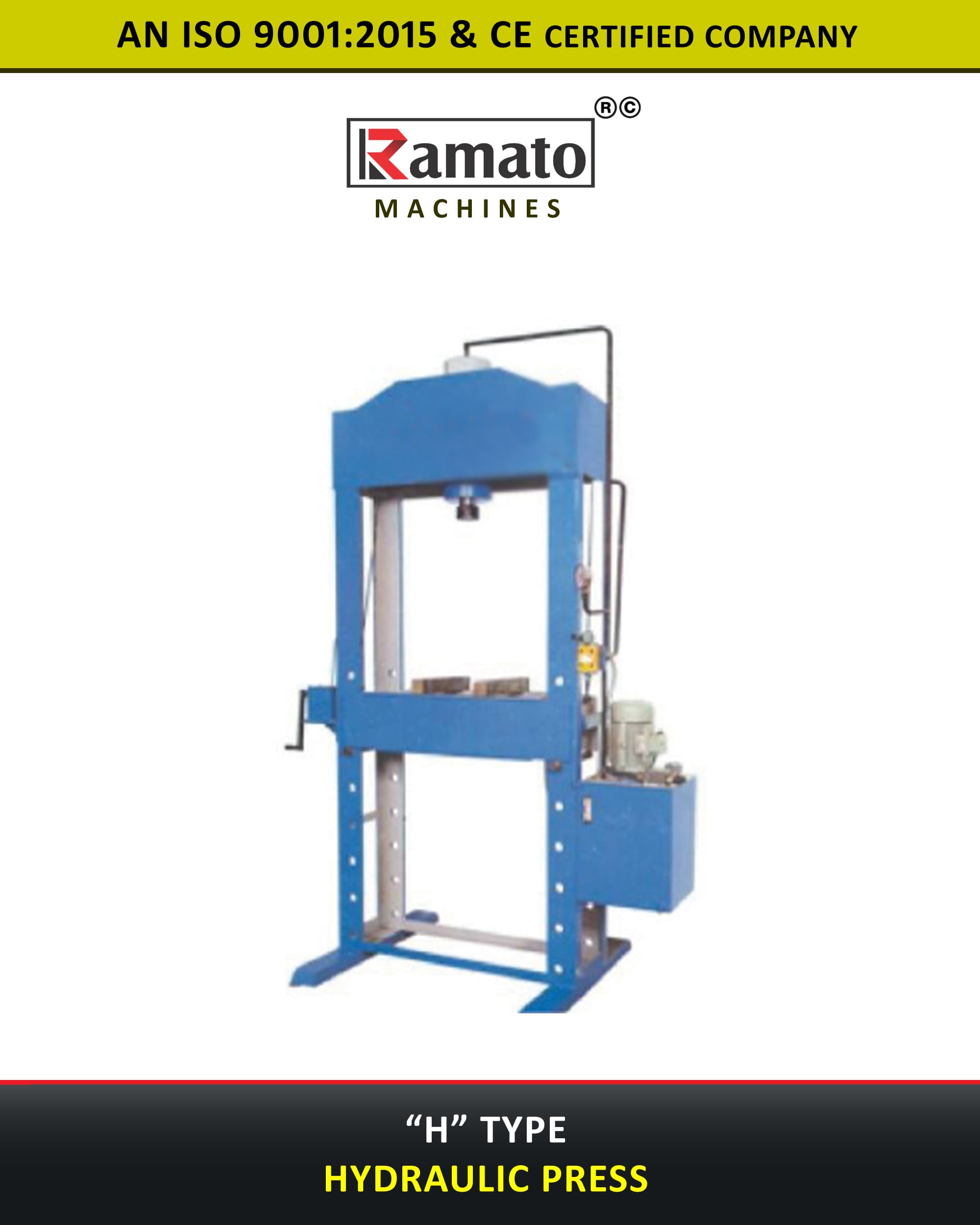

H TYPE HYDRAULIC PRESS

H TYPE HYDRAULIC PRESS

Ramato is Leading Manufacturer and Exporter Of H Type Hydraulic Press From Rajkot Gujarat Bharat (INDIA). An Ramato H-type hydraulic press is a type of hydraulic press machine that utilizes hydraulic pressure to perform various forming, shaping, and pressing operations.

An H-type hydraulic press typically consists of the following components:

  1. Frame: The frame of the press is shaped like the letter “H,” giving it its name. This sturdy frame provides structural support and rigidity to withstand the forces generated during the pressing operation.
  2. Hydraulic System: The press is powered by a hydraulic system consisting of a hydraulic pump, hydraulic cylinders, valves, and hoses. Hydraulic fluid is pumped into the cylinders to generate force, which is then transmitted to the ram or slide for pressing the workpiece.
  3. Ram (Slide): The ram, also known as the slide, is the moving component of the press that carries the tooling (die) and applies the force to the workpiece during the pressing operation.
  4. Bed: The bed is the stationary component of the press where the lower die is mounted. It provides a flat and stable surface for supporting the workpiece during forming or pressing.
  5. Control System: Modern H-type hydraulic presses may feature electronic control systems for precise control of the pressing operation, including pressure, speed, and timing.

Features

  1. High Force: H-type hydraulic presses are capable of exerting high levels of force, making them suitable for pressing and forming operations that require significant force.
  2. Adjustable Pressure: The hydraulic system allows for precise control over the pressure applied to the workpiece, making it possible to tailor the pressing operation to the specific requirements of the workpiece.
  3. Slow Speed Control: Hydraulic presses offer the ability to control the speed of the ram, allowing for gradual and precise forming operations.
  4. Versatility: These presses can perform a wide range of operations, including bending, straightening, drawing, punching, and assembling, making them versatile tools for various manufacturing processes.
  5. Safety Features: H-type hydraulic presses are equipped with safety features such as pressure relief valves, safety guards, and emergency stop buttons to protect operators from accidents and injuries.
  6. Quiet Operation: Hydraulic presses operate with less noise compared to mechanical presses, making them suitable for use in environments where noise levels need to be minimized.

Applications

  1. Metal Forming: H-type hydraulic presses are widely used in metalworking industries for forming and shaping metal components such as sheet metal, plates, tubes, and profiles.
  2. Plastic and Rubber Molding: They are employed in the plastics and rubber industries for molding and shaping plastic and rubber components such as automotive parts, consumer goods, and industrial products.
  3. Forging: Hydraulic presses are used in forging operations for shaping metal workpieces by applying controlled pressure and force.
  4. Compression Molding: They are utilized in compression molding processes for manufacturing composite materials, ceramics, and powdered metals.
  5. Powder Compaction: Hydraulic presses are used in powder metallurgy processes for compacting metal powders into dense and uniform shapes for subsequent sintering.
  6. Assembly Operations: They are used in assembly operations for pressing components together, such as bearings, bushings, and gears.

In summary, Ramato H-type hydraulic presses are versatile and powerful machines used for a wide range of pressing, forming, and shaping operations in various industries. Their ability to exert high force, precise control, and versatility make them indispensable tools for manufacturing processes requiring pressing operations.

Specifications

TONCRANK SHAFT DIASTROKE ADJUST MENTHOLE IN RAM
HOLE IN BED
BED SIZE
DIST BED TO RAM
MOTOR HP
WEIGHT APPROX (KG)
20758-633289406 X 50825521000
308310-7638102457 X 55628031300
5010212-8944127508 X 61033252200
6010812-8944150711 X 45735753000
8012013-11451175610 X 7623827.53200
10013013-11451190660 X 813406104700
15015216-12757203710 X 910420155700
20015818-15257203760 X 965432209000
25016518-16557216812 X 10664852511500
