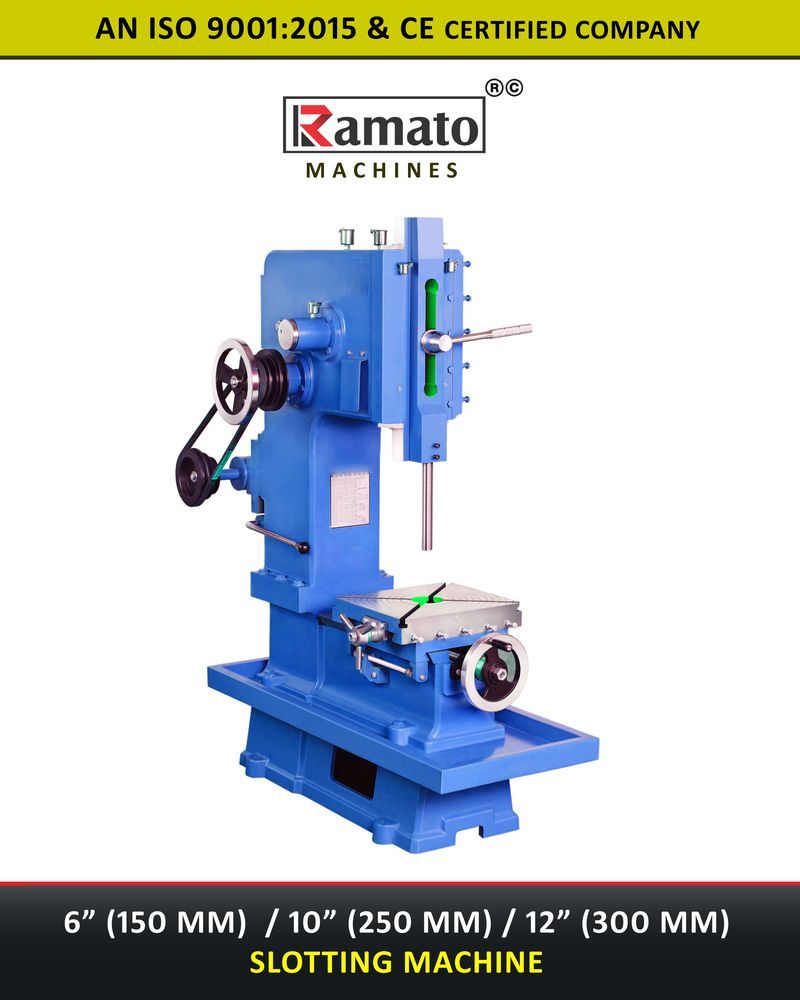

Our Ramato Make Keyway Slotting Machine, Slotting Machine Manufacturer in India is a specialized tool designed for accurately machining keyways and slots in shafts, hubs, and other cylindrical workpieces. With its robust construction and precise cutting capabilities, this machine offers efficient and reliable slotting operations for various mechanical and engineering applications. Ramato is India’s Leading Shearing Cutting Machine Manufacturer and Exporter From Rajkot Gujarat Bharat (INDIA). Industrial Slotting Machine Price in india.
Available Models as 150 mm (6″), 200 mm (8″), 250 mm (10″), 300 mm (12″), 400 mm (16″) and 450 mm (18″) Series.
Precision Cutting Mechanism: Equipped with a high-speed rotating cutter or broach, the machine delivers precise and clean cuts with minimal chatter or vibration, ensuring accurate dimensions and surface finish of the machined slots.
Adjustable Cutting Parameters: The machine features adjustable cutting parameters, such as cutting depth, feed rate, and cutting speed, allowing users to customize slotting operations to meet specific project requirements.
Vertical Slotting Configuration: Some models of the keyway slotting machine may feature a vertical slotting configuration, with the workpiece mounted vertically on the machine table, allowing for easy setup and access to the cutting area.
Easy-to-Use Controls: Designed with intuitive controls and a user-friendly interface, the machine offers easy operation and quick setup for efficient slotting operations, even for users with minimal training or experience.
Easy Maintenance: The keyway slotting machine requires minimal maintenance and is easy to clean and lubricate, ensuring smooth operation and extended tool life with regular care and upkeep.
Machinery Manufacturing: Used for machining keyways and slots in shafts, gears, pulleys, and other mechanical components in machinery manufacturing processes.
Automotive Industry: Essential for slotting operations on engine crankshafts, transmission shafts, axle shafts, and other automotive components.
Tool and Die Making: Suitable for creating keyways and slots in tooling components, dies, molds, and fixtures for metalworking and fabrication processes.
Aerospace Engineering: Used for machining keyways and slots in aerospace components, such as aircraft landing gear, turbine shafts, and engine parts.
General Engineering: Ideal for slotting operations in various engineering applications, including hydraulic cylinders, pump shafts, conveyor rollers, and industrial equipment components.
Overall, the Keyway Slotting Machine offers efficient and precise slotting capabilities for a wide range of mechanical and engineering applications, making it an essential tool for machinists, engineers, and manufacturers involved in precision machining operations.
Features
Precision Cutting Mechanism: Equipped with a high-speed rotating cutter or broach, the machine delivers precise and clean cuts with minimal chatter or vibration, ensuring accurate dimensions and surface finish of the machined slots.
Adjustable Cutting Parameters: The machine features adjustable cutting parameters, such as cutting depth, feed rate, and cutting speed, allowing users to customize slotting operations to meet specific project requirements.
Vertical Slotting Configuration: Some models of the keyway slotting machine may feature a vertical slotting configuration, with the workpiece mounted vertically on the machine table, allowing for easy setup and access to the cutting area.
Easy-to-Use Controls: Designed with intuitive controls and a user-friendly interface, the machine offers easy operation and quick setup for efficient slotting operations, even for users with minimal training or experience.
Easy Maintenance: The keyway slotting machine requires minimal maintenance and is easy to clean and lubricate, ensuring smooth operation and extended tool life with regular care and upkeep.
Applications
Machinery Manufacturing: Used for machining keyways and slots in shafts, gears, pulleys, and other mechanical components in machinery manufacturing processes.
Automotive Industry: Essential for slotting operations on engine crankshafts, transmission shafts, axle shafts, and other automotive components.
Tool and Die Making: Suitable for creating keyways and slots in tooling components, dies, molds, and fixtures for metalworking and fabrication processes.
Aerospace Engineering: Used for machining keyways and slots in aerospace components, such as aircraft landing gear, turbine shafts, and engine parts.
General Engineering: Ideal for slotting operations in various engineering applications, including hydraulic cylinders, pump shafts, conveyor rollers, and industrial equipment components.
Overall, the Keyway Slotting Machine offers efficient and precise slotting capabilities for a wide range of mechanical and engineering applications, making it an essential tool for machinists, engineers, and manufacturers involved in precision machining operations.
| MODEL | 150 MM (6”) | 250 MM (10”) | 300 MM (12”) | 400 MM (16″) | 450 MM (18″) |
| ADJUSTABLE STROKE | 10 TO 150 MM | 10 TO 250 MM | 10 TO 300 MM | 10 TO 400 MM | 10 TO 450 MM |
| LONGITUDINAL MOVEMENT | 200 MM | 230 MM | 260 MM | 380 MM | 430 MM |
| CROSS MOVEMENT | 110 MM | 110 MM | 145 MM | 180 MM | 230 MM |
| SPEED ADJUSTMENT | 3 SPEED | 3 SPEED | 3 SPEED | 3 SPEED | 3 SPEED |
| RAM ADJUSTMENT | 150 MM | 250 MM | 300 MM | 380 MM | 430 MM |
| H.P. (EXTRA ACCESSORIES) | 1.5 H.P. MOTOR | 2 H.P. MOTOR | 3 H.P. MOTOR | 5 H.P. MOTOR | 5 H.P. MOTOR |
| HORIZONTAL CENTER SIZE | 210 MM | 330 MM | 395 MM | 410 MM | 435 MM |
| VERTICAL CENTER SIZE | 310 MM | 410 MM | 450 MM | 550 MM | 610 MM |
| COMPUND TABLE SIZE | 280 X 335 MM | 280 X 335 MM | 345 X 345 MM | 375 X 375 MM | 450 X 450 MM |
| STANDARD EQUIPMENTS | MOTOR PULLEY, COUNTER V – BELT | ||
| EXTRA EQUIMENTS | BORING BAR, DEVIDER (ROTARY TABLE WITH 36:1), ELECTRIC MOTOR, SWITCH, TRUE CHUCK, V – BELT | ||
