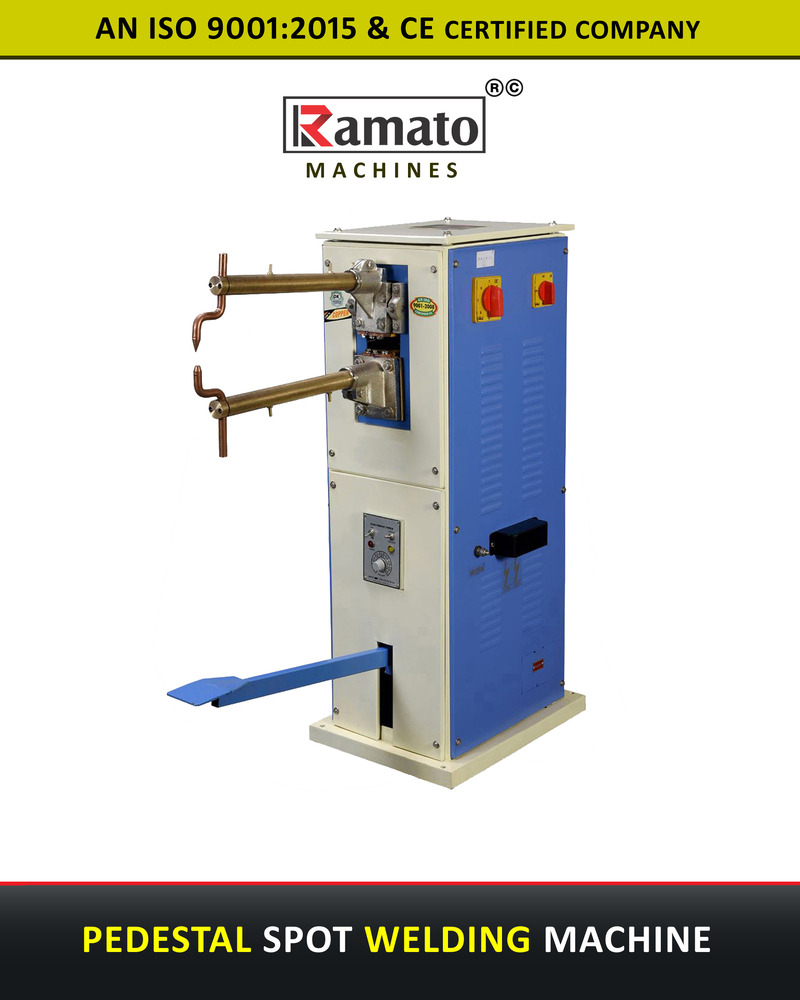

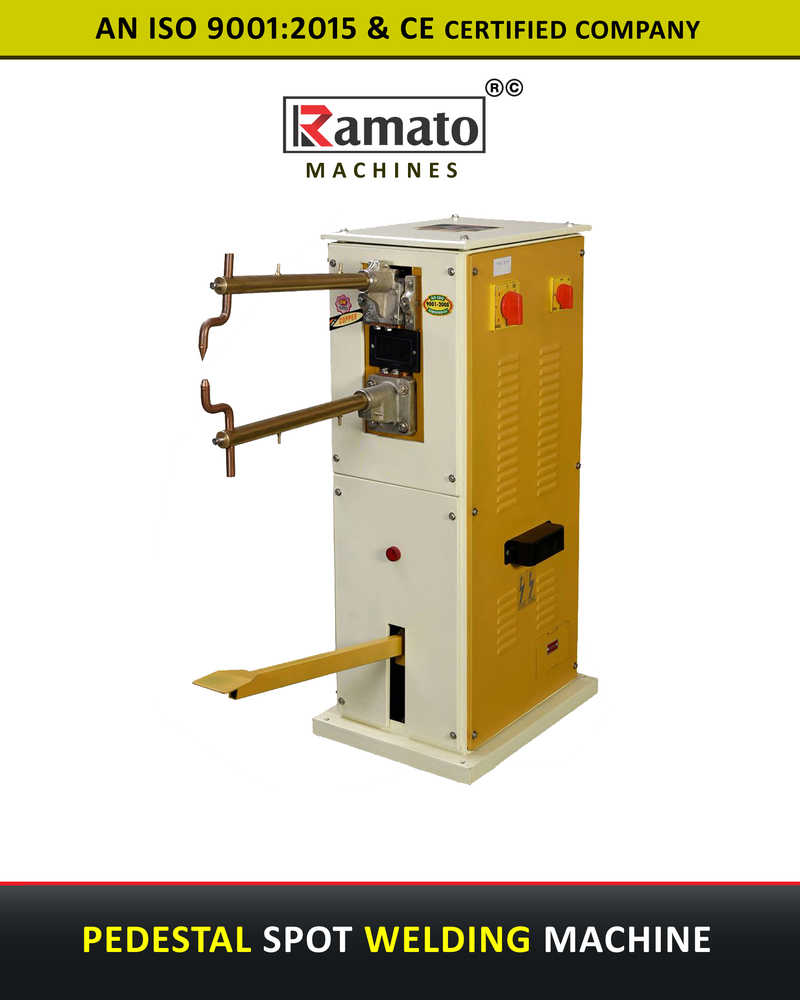

A Ramato Make pedestal type spot welding machine is a heavy-duty piece of equipment designed for joining two pieces of metal together through a process of resistance welding. We are Pedestal Spot Welding Machine Manufacturer in India.
This type of machine is mounted on a sturdy pedestal for added stability and durability during the welding process. The machine typically consists of a welding head, electrodes, a power supply, and a control panel.
The welding head applies pressure to the metal pieces being joined while passing an electric current through them, creating heat that melts the metal at the point of contact. The electrodes conduct the electric current and help to focus the heat in a specific spot.
Pedestal type spot welding machines are commonly used in manufacturing and construction industries to weld components for a wide range of products, such as automotive parts, appliances, and metal furniture.
These machines are known for their high efficiency, precision, and ability to produce strong, durable welds. Additionally, they are designed to be user-friendly and safe to operate, making them a popular choice for industrial applications.
Compact design: Pedestal spot welding machines are typically smaller and more lightweight compared to other types of spot welding machines, making them easy to move and set up in various workspaces.
Motorized drive: Some pedestal spot welding machines come with motorized drives that automate the welding process, resulting in consistent and precise welds.
Adjustable welding parameters: These machines often feature adjustable welding parameters such as welding current, time, and pressure, allowing for customization based on the material being welded.
Touch screen control: Many pedestal spot welding machines have user-friendly touch screen controls that make it easy to program and operate the machine.
Safety features: These machines are equipped with safety features such as emergency stop buttons, thermal overload protection, and voltage monitoring to ensure the safety of the operator.
Versatile applications: Pedestal spot welding machines can be used for a wide range of applications, including automotive, aerospace, electronics, and manufacturing industries.
High productivity: With fast welding speeds and the ability to weld multiple spots at once, pedestal spot welding machines can greatly increase productivity in welding operations.
Durability: Built with robust materials and components, pedestal spot welding machines are designed to withstand heavy-duty industrial use and provide long-lasting performance.
Pedestal spot welding machines are used in a variety of industries for joining metal parts together through the application of heat and pressure. Some common applications of pedestal spot welding machines include:
Automotive industry: Pedestal spot welding machines are commonly used in the automotive industry for joining parts of car bodies, such as panels, brackets, and chassis components.
Construction industry: These machines are used in the construction industry for welding steel beams, columns, and other structural elements.
Electrical industry: Pedestal spot welding machines are used in the electrical industry for welding components of electrical enclosures, control panels, and other equipment.
Furniture industry: These machines are used in the furniture industry for welding metal parts of furniture pieces such as frames, supports, and joints.
Industrial manufacturing: Pedestal spot welding machines are used in various manufacturing industries, such as aerospace, appliance, and metal fabrication, for joining metal components.
Overall, the versatility and efficiency of pedestal spot welding machines make them essential tools in various industries where metal joining is required.
Features
Compact design: Pedestal spot welding machines are typically smaller and more lightweight compared to other types of spot welding machines, making them easy to move and set up in various workspaces.
Motorized drive: Some pedestal spot welding machines come with motorized drives that automate the welding process, resulting in consistent and precise welds.
Adjustable welding parameters: These machines often feature adjustable welding parameters such as welding current, time, and pressure, allowing for customization based on the material being welded.
Touch screen control: Many pedestal spot welding machines have user-friendly touch screen controls that make it easy to program and operate the machine.
Safety features: These machines are equipped with safety features such as emergency stop buttons, thermal overload protection, and voltage monitoring to ensure the safety of the operator.
Versatile applications: Pedestal spot welding machines can be used for a wide range of applications, including automotive, aerospace, electronics, and manufacturing industries.
High productivity: With fast welding speeds and the ability to weld multiple spots at once, pedestal spot welding machines can greatly increase productivity in welding operations.
Durability: Built with robust materials and components, pedestal spot welding machines are designed to withstand heavy-duty industrial use and provide long-lasting performance.
Applications
Pedestal spot welding machines are used in a variety of industries for joining metal parts together through the application of heat and pressure. Some common applications of pedestal spot welding machines include:
Automotive industry: Pedestal spot welding machines are commonly used in the automotive industry for joining parts of car bodies, such as panels, brackets, and chassis components.
Construction industry: These machines are used in the construction industry for welding steel beams, columns, and other structural elements.
Electrical industry: Pedestal spot welding machines are used in the electrical industry for welding components of electrical enclosures, control panels, and other equipment.
Furniture industry: These machines are used in the furniture industry for welding metal parts of furniture pieces such as frames, supports, and joints.
Industrial manufacturing: Pedestal spot welding machines are used in various manufacturing industries, such as aerospace, appliance, and metal fabrication, for joining metal components.
Overall, the versatility and efficiency of pedestal spot welding machines make them essential tools in various industries where metal joining is required.
| Particulars | Units | Spot Welding Machine Pedal Operated | |||
| Model | Units | RTDSW – 8 (Select) | RTDSW – 10 | RTDSW – 12 | RTDSW – 15 |
| Rating @ 50% Duty Cycle | KVA | 8 | 10 | 12 | 15 |
| Input Supply | Volts | 230 / 440 | 230 / 440 | 230 / 440 | 380 / 440 |
| Phase | 1/2 Ph | 1/2 Ph | 1/2 Ph | 2 Ph | |
| Insulation Class | A (Cu.) | A (Cu.) | A (Cu.) | A (Cu.) | |
| Nominal Throat Clearance | MM | 230 | 230 | 230 | 230 |
| Throat Depth | MM | 450 | 450 | 450 | 450 |
| Max. Electrode Force | MM | 40 | 40 | 40 | 40 |
| Nominal Electrode Force (Approx) | Kg. | 100 | 100 | 100 | 100 |
| Max. Available Short Circuit Current | K. Amps | 7.5 | 7.5 | 8 | 10 |
| Mild Steel Thickness Max. | MM | 2.0 / 0.3 | 2.5 / 0.3 | 3.0 / 0.4 | 3.0 / 0.5 |
| Brass Steel Thickness Max. | MM | 0.9 / 0.1 | 1.1 / 0.2 | 1.2 / 0.25 | 1.5 / 0.3 |
| Stainless Steel Thickness | MM | 1.8 / 0.25 | 2.2 / 0.28 | 2.4 / 0.32 | 2.4 / 0.35 |
| Cooling for Arms Electrode | Water | Water | Water | Water | |
| Approx Dimensions mm | H x L x W | 1110 x 600 x 420 | 1200 x 660 x 450 | 1200 x 660 x 450 | 1200 x 660 x 450 |
| Approx Weight | Kg. | 130 | 155 | 160 | 165 |
